ข้อมูลสายพาน และ Pulley
เตือนความจำ
ขนาดหน้ากว้างของสายพาน 0.5 นิ้ว = 12.70 มม.
0.37 นิ้ว = 9.50 มม.
0.25 นิ้ว = 6.35 มม.
0.197 นิ้ว = 5.00 มม.
ความรู้เบื้องต้นเกี่ยวกับสายพานส่งกำลัง
การส่งกำลังทางกลจากเพลาอันหนึ่งไปยังเพลาอีกอันหนึ่ง อาจทำได้สามวิธี คือ โดยใช้เฟือง ใช้สายพาน และใช้โซ่ การส่งกำลังโดยสายพานเป็นการส่งกำลังแบบอ่อนตัวได้ (Flexible) ซึ่ง มีข้อดีและข้อเสียหลายประการเมื่อเปรียบเทียบกับการส่งกำลังโดยใช้เฟืองและ โซ่ ข้อดีคือ มีราคาถูกและใช้งานง่าย รับแรงกระตุกและการสั่นสะเทือนได้ดี ขณะใช้งานไม่มีเสียงดัง เหมาะสำหรับการส่งกำลังระหว่างเพลาที่อยู่ห่างกันมากๆ และค่าใช้จ่ายในการบำรุงรักษาต่ำ อย่างไรก็ตามข้อเสียของการขับด้วยสายพานก็มีคือ อัตราการทดที่ไม่แน่นอนนักเนื่องจากการสลิป (Slip) และการครีฟ (Creep) ของ สายพานและต้องมีการปรับระยะห่างระหว่างเพลาหรือปรับแรงดึงในสายพานระหว่าง การใช้งาน นอกจากนั้นยังไม่อาจใช้งานที่มีอัตราทดสูงมากได้ ซึ่งมักใช้กับอัตราทดไม่เกิน 5 เท่า
1. ชนิดและวัสดุของสายพาน
สายพานแบ่งออกเป็นสี่ชนิดตามลักษณะหน้าตัดของสายพาน คือ สายพานแบน (Flat Belts) มีหน้าตัดเป็นรูปสี่เหลี่ยมผืนผ้า สายพานลิ่ม (V-belts) มีหน้าตัดเป็นรูปสี่เหลี่ยมคางหมู สายพานกลม (Ropes) มีหน้าตัดเป็นรูปวงกลมและสายพานไทม์มิ่ง (Timing Belt) มีหน้าตัดเป็นรูปสี่เหลี่ยมคางหมูแต่จะทำเป็นร่องคล้ายฟันเฟืองตลอดความยาวของสายพาน สายพานแต่ละชนิดจะมีลักษณะในการใช้งานต่างกัน
วัสดุที่ใช้ทำสายพานซึ่งใช้งานกันมากก็คือหนัง (Oak-tanned Leather) แต่ถ้าเป็นการใช้งานพิเศษ เช่นอยู่ในบรรยากาศที่มีความชื้นสูง มีไอของสารเคมี หรือมีน้ำมันอยู่ด้วยก็มักใช้สายพานแบบ Chrome Leather เพื่อ ให้สายพานมีอายุการใช้งานได้นานพอสมควร จึงมักให้ค่าความเค้นในการออกแบบสายพานต่ำกว่าความต้านแรงดึงสูงสุดของ สายพานมากๆ โดยทั่วไปจะใช้ค่าความปลอดภัยประมาณ 10 ค่าสัมประสิทธิ์ความเสียดทานของสายพานหนังจะมีค่าประมาณ 0.40 – 0.50 และความเร็วใช้งานของสายพานควรจะอยู่ในช่วง 1,000 – 2,000 m/min
สายพานอีกชนิดหนึ่งคือสายพานยาง (Rubber Belts) สายพานประเภทนี้จะมีฝ้ายหรือผ้าใบเป็นไส้ภายในและมียางหุ้มอยู่ภายนอก ยางที่ใช้หุ้มจะเป็นยางที่อบด้วยกำมะถันในอุณหภูมิสูง (Vulcanized) เพื่อ เพิ่มความยืดหยุ่นและความต้านแรง สายพานยางเหมาะสำหรับใช้กับงานที่มีน้ำมันหรือแสงแดด เมื่อเปรียบเทียบกับสายพานหนังแล้ว สายพานยางจะมีราคาถูกกว่าแต่อายุใช้งานสั้นกว่าสายพานยางทนต่อสภาพบรรยากาศ ในการใช้งานได้ดีกว่าสายพานหนัง ค่าสัมประสิธิ์ความเสียดทานของสายพานยางจะมีค่าประมาณ 0.30 – 0.40 และสามารถรับแรงดึงได้ประมาณ 20 N ต่อชั้น ต่อความกว้างสายพาน 1 mm.
สายพานทุกชนิดที่กล่าวมานี้จะยืดตัวได้ดี ดังนั้นเมื่ออยู่ภายใต้แรงดึงจะยืดตัวทำให้เกิดการสลิปบนล้อสายพาน (Pulley) ในทางปฏิบัติจึงมักจะยืดสายพานให้ตึงไว้ก่อนใช้งานทั้งนี้เพื่อเป็นการลดการสลิปของสายพาน
2. การครีพและการสลิปของสายพาน
ความ แตกต่างระหว่างการครีพและการสลิปของสายพานจะเห็นได้อย่างชัดเจนโดยการ พิจารณาการขับด้วยสายพาน เมื่อสายพานส่วนหนึ่งเคลื่อนที่เข้าหาล้อขับ สายพานจะเคลื่อนที่ไปตามส่วนโค้งสัมผัสบนล้อสายพานด้วยความเร็วที่เท่ากับ ความเร็วขอบของล้อสายพาน (ถ้าแรงดึงในสายพานมากเพียงพอที่จะเอาชนะแรงภายนอกได้) เมื่อสายพานส่วนนี้ใกล้จะออกจากล้อสายพาน แรงดึงในสายพานจะลดลงเท่ากับแรงดึงในด้านหย่อนเป็นผลให้สายพานหดสั้นลง ในทำนองเดียวกันสายพานที่เคลื่อนที่ตามออกไปก็จะหดสั้นลงด้วย ดังนั้นความเร็วจริงของสายพานที่เคลื่อนที่ออกจากล้อขับจะมีค่าน้อยกว่าความ เร็วขณะเข้าสู่ล้อสายพาน ในทำนองเดียวกัน ความเร็วความเร็วของสายพานจะเพิ่มขึ้นในช่วงส่วนโค้งสัมผัสของล้อตามเมื่อ แรงดึงในสายพานเพิ่มขึ้นเท่ากับแรงดึงในด้านตึงและสายพานที่เคลื่อนที่ ตามออกมาก็จะยืดตัวจนมีความยาวเท่าเดิม ปรากฎการณ์ที่สายพานเปลี่ยนความเร็วเป็นความเร็วที่ช้าลงบนล้อขับ และเพิ่มความเร็วบนล้อตาม เรียกว่า การครีพ (Creep)
เมื่อ แรงภายนอกเพิ่มขึ้นโดยไม่เพิ่มแรงดึงชั้นต้นในสายพาน สายพานทุกส่วนจะเกิดการเปลี่ยนแปลงแรงดึงในตัวสายพานเมื่อเริ่มเข้าสู่โค้ง สัมผัส ถ้าแรงภายนอกมากเพียงพอส่วนโค้งที่เกิดการครีพอาจจะเท่ากับส่วนโค้งสัมผัส ดังนั้นจึงเกิดการสลิป (Slip) ขึ้น การสลิปอาจเกิดขึ้นบนล้อสายพานเพียงล้อเดียว ส่วนการครีพจำเป็นจะต้องเกิดขึ้นเท่ากันบนล้อสายพานทั้งสองล้อ
การ ออกแบบการขับด้วยสายพานที่ดี เมื่อทำงานในสภาวะปกติไม่ควรมีการสลิปแต่การครีพจะเกิดขึ้นเสมอไม่ว่าจะเป็น สายพานชนิดใด การเกิดครีพและสลิปทำให้ต้องสูญเสียกำลังงานและความเร็ว แต่การสูญเสียที่เกิดจากการครีพมีค่าน้อยมาก การสลิปอาจทำให้เกิดความร้อนมากเพียงพอที่จะทำให้ผิวหน้าของสายพานเสียหาย ได้ ดังนั้นจึงควรระมัดระวังไม่ให้เกิดการสลิป ด้วยวิธีการดึงสายพานให้ตึงเพียงพอก่อนการใช้งานเพื่อกำจัดการสลิป
ข้อมูลสายพาน MXL
The list timing belt specification Model and size(MXL type Pitch=2.032mm)
Tooth form diagram(MXL):
1.The list timing belt specification Model and size(MXL type Pitch=2.032mm)

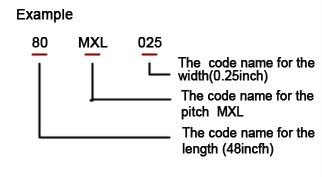

Tooth form diagram(MXL): Representation of MXL belts :

|
2. Trapeziod tooth industrial rubber synchronous belt
Tooth form diagram
|
Toothe type
|
Section
|
pitch (mm)
|
Tooth Height (mm)
|
Belt Height (mm)
|
Angleβ°
|

Inch system trapezoid tooth
|
Inch system
trapezoid tooth
|
MXL
|
2.032
|
0.51
|
1.14
|
40
|
XL
|
5.08
|
1.24
|
2.30
|
50
|
L
|
9.525
|
1.91
|
3.60
|
40
|
H
|
12.7
|
2.29
|
4.30
|
40
|
XH
|
22.225
|
6.35
|
11.20
|
40
|
XXH
|
31.750
|
9.53
|
15.70
|
40
|

Metric system trapezoid tooth
|
Metric system
trapezoid tooth
|
T2.5
|
2.5
|
0.70
|
1.30
|
40
|
T5
|
5
|
1.20
|
2.20
|
40
|
T10
|
10
|
2.50
|
4.50
|
40
|
T20
|
20
|
5.00
|
8.00
|
40
|
AT5
|
5
|
1.20
|
2.70
|
50
|
AT10
|
10
|
2.50
|
5.00
|
50
|
AT20
|
20
|
5.00
|
8.00
|
50
|
|
3.Dimension of rubber synchronous belt
Pich Length หมายถึง ความยาวของสายพานตรงทั้งเส้น หากต้องการหาเส้นผ่านศูนย์กลาง หรือความยาวของสานพานที่พับทับกัน 2เส้น
ให้หารด้วย 2
Type
|
Pich Length
|
Teeth Number
|
Type
|
Pich Length
|
Teeth Number
|
Type
|
Pich Length
|
Teeth Number
|
40 MXL
|
101.6
|
50
|
85 MXL
|
215.39
|
106
|
189 MXL
|
479.55
|
236
|
42 MXL
|
107.7
|
53
|
88 MXL
|
223.52
|
110
|
192 MXL
|
487.68
|
240
|
43 MXL
|
109.73
|
54
|
89 MXL
|
227.58
|
112
|
198 MXL
|
503.94
|
248
|
44 MXL
|
111.76
|
55
|
91 MXL
|
231.65
|
114
|
200 MXL
|
508
|
250
|
45 MXL
|
113.79
|
56
|
92 MXL
|
233.68
|
115
|
205 MXL
|
520.19
|
256
|
46 MXL
|
117.86
|
58
|
94 MXL
|
239.78
|
118
|
208 MXL
|
528.32
|
260
|
47MXL
|
119.89
|
59
|
96 MXL
|
243.84
|
120
|
212 MXL
|
538.48
|
265
|
48 MXL
|
121.92
|
60
|
97.6 MXL
|
247.9
|
122
|
221 MXL
|
560.83
|
276
|
50 MXL
|
128.02
|
63
|
98 MXL
|
249.94
|
123
|
224 MXL
|
568.96
|
280
|
52 MXL
|
132.08
|
65
|
100 MXL
|
254
|
125
|
228 MXL
|
579.12
|
285
|
53 MXL
|
134.11
|
66
|
101 MXL
|
256.03
|
126
|
232 MXL
|
589.28
|
290
|
54 MXL
|
138.18
|
68
|
102.4 MXL
|
260.1
|
128
|
236 MXL
|
599.44
|
295
|
56 MXL
|
142.24
|
70
|
104 MXL
|
264.16
|
130
|
240 MXL
|
609.6
|
300
|
57 MXL
|
144.27
|
71
|
105 MXL
|
266.19
|
131
|
244 MXL
|
619.76
|
305
|
58 MXL
|
146.3
|
72
|
106 MXL
|
268.22
|
132
|
250 MXL
|
633.98
|
312
|
58.4 MXL
|
148.34
|
73
|
112 MXL
|
284.48
|
140
|
254 MXL
|
646.18
|
318
|
60 MXL
|
152.4
|
75
|
115 MXL
|
292.61
|
144
|
256 MXL
|
650.24
|
320
|
61 MXL
|
154.43
|
76
|
117 MXL
|
298.7
|
147
|
258 MXL
|
656.34
|
323
|
61.6 MXL
|
156.46
|
77
|
118 MXL
|
300.74
|
148
|
259 MXL
|
658.37
|
324
|
63 MXL
|
160.53
|
79
|
120 MXL
|
304.8
|
150
|
262 MXL
|
666.5
|
328
|
64 MXL
|
162.56
|
80
|
121 MXL
|
306.83
|
151
|
266 MXL
|
676.66
|
333
|
65 MXL
|
166.62
|
82
|
122 MXL
|
310.9
|
153
|
269 MXL
|
682.75
|
336
|
66 MXL
|
168.66
|
83
|
124 MXL
|
314.96
|
155
|
280 MXL
|
711.2
|
350
|
68 MXL
|
172.72
|
85
|
126 MXL
|
321.06
|
158
|
290 MXL
|
735.58
|
362
|
69 MXL
|
176.78
|
87
|
128 MXL
|
325.12
|
160
|
292 MXL
|
741.68
|
365
|
70 MXL
|
178.82
|
88
|
129 MXL
|
327.15
|
161
|
302 MXL
|
768.1
|
378
|
72 MXL
|
182.88
|
90
|
132 MXL
|
335.28
|
165
|
320 MXL
|
812.8
|
400
|
73 MXL
|
186.94
|
92
|
136 MXL
|
345.44
|
170
|
362 MXL
|
920.5
|
453
|
74 MXL
|
188.98
|
93
|
140 MXL
|
355.6
|
175
|
379 MXL
|
961.14
|
473
|
75 MXL
|
191.01
|
94
|
144 MXL
|
365.76
|
180
|
403 MXL
|
1024.13
|
504
|
76 MXL
|
193.04
|
95
|
152 MXL
|
386.08
|
190
|
418 MXL
|
1060.7
|
522
|
76.8 MXL
|
195.07
|
96
|
155 MXL
|
394.21
|
194
|
456 MXL
|
1158.24
|
570
|
77 MXL
|
197.1
|
97
|
160 MXL
|
406.4
|
200
|
480 MXL
|
1219.2
|
600
|
78 MXL
|
199.14
|
98
|
168 MXL
|
426.72
|
210
|
518 MXL
|
1316.74
|
648
|
80 MXL
|
203.3
|
100
|
169 MXL
|
430.78
|
212
|
608 MXL
|
1544.32
|
760
|
81 MXL
|
207.26
|
102
|
175 MXL
|
445.01
|
219
|
810 MXL
|
2056.38
|
1012
|
82 MXL
|
209.3
|
103
|
179 MXL
|
455.17
|
224
|
848 MXL
|
2153.92
|
1060
|
83 MXL
|
211.33
|
104
|
180 MXL
|
457.2
|
225
|
1170 MXL
|
2972.82
|
1463
|
84 MXL
|
213.36
|
105
|
185 MXL
|
471.42
|
232
|
|
|
|
|
ข้อมูลสายพาย XL
1.The list timing belt specification Model and size(XL type Pitch=5.08mm)
Tooth form diagram(XL): Representation of XL belts :

|
2.Trapezoid tooth industrial rubber synchronous belt
Tooth form diagram
|
Toothe type
|
Section
|
pitch (mm)
|
Tooth Height (mm)
|
Belt Height (mm)
|
Angle?°
|

Inch system trapezoid tooth
|
Inch system
trapezoid tooth
|
MXL
|
2.032
|
0.51
|
1.14
|
40
|
XL
|
5.08
|
1.24
|
2.30
|
50
|
L
|
9.525
|
1.91
|
3.60
|
40
|
H
|
12.7
|
2.29
|
4.30
|
40
|
XH
|
22.225
|
6.35
|
11.20
|
40
|
XXH
|
31.750
|
9.53
|
15.70
|
40
|

Metric system trapezoid tooth
|
Metric system
trapezoid tooth
|
T2.5
|
2.5
|
0.70
|
1.30
|
40
|
T5
|
5
|
1.20
|
2.20
|
40
|
T10
|
10
|
2.50
|
4.50
|
40
|
T20
|
20
|
5.00
|
8.00
|
40
|
AT5
|
5
|
1.20
|
2.70
|
50
|
AT10
|
10
|
2.50
|
5.00
|
50
|
AT20
|
20
|
5.00
|
8.00
|
50
|
|
3.Dimension of rubber synchronous belt
Type
|
Pich Length
|
Teeth Number
|
Type
|
Pich Length
|
Teeth Number
|
Type
|
Pich Length
|
Teeth Number
|
44 XL
|
111.76
|
22
|
164 XL
|
416.56
|
82
|
306 XL
|
777.24
|
153
|
60 XL
|
152.40
|
30
|
166 XL
|
421.64
|
83
|
310 XL
|
787.40
|
155
|
70 XL
|
177.80
|
35
|
170 XL
|
431.80
|
85
|
312 XL
|
792.48
|
156
|
76 XL
|
193.04
|
38
|
172 XL
|
436.88
|
86
|
316 XL
|
802.64
|
158
|
78 XL
|
198.12
|
39
|
176 XL
|
447.04
|
88
|
320 XL
|
812.80
|
160
|
80 XL
|
203.20
|
40
|
180 XL
|
457.20
|
90
|
322 XL
|
817.88
|
161
|
82 XL
|
208.28
|
41
|
182 XL
|
462.28
|
91
|
326 XL
|
828.04
|
163
|
90 XL
|
228.60
|
45
|
184 XL
|
467.36
|
92
|
330 XL
|
838.20
|
165
|
92 XL
|
233.68
|
46
|
188 XL
|
477.52
|
94
|
334 XL
|
848.36
|
167
|
94 XL
|
238.76
|
47
|
190 XL
|
482.60
|
95
|
336 XL
|
853.44
|
168
|
96 XL
|
243.84
|
48
|
194 XL
|
492.76
|
97
|
338 XL
|
858.52
|
169
|
98 XL
|
248.92
|
49
|
196 XL
|
497.84
|
98
|
340 XL
|
863.60
|
170
|
100 XL
|
254.00
|
50
|
198 XL
|
502.92
|
99
|
348 XL
|
883.92
|
174
|
102 XL
|
259.08
|
51
|
200 XL
|
508.00
|
100
|
350 XL
|
889.00
|
175
|
104 XL
|
264.16
|
52
|
202 XL
|
513.08
|
101
|
352 XL
|
894.08
|
176
|
106 XL
|
269.24
|
53
|
206 XL
|
523.24
|
103
|
360 XL
|
914.40
|
180
|
108 XL
|
274.35
|
54
|
208 XL
|
528.32
|
104
|
364 XL
|
924.56
|
182
|
110 XL
|
279.40
|
55
|
210 XL
|
533.40
|
105
|
372 XL
|
944.88
|
186
|
114 XL
|
289.56
|
57
|
212 XL
|
538.48
|
106
|
380 XL
|
965.20
|
190
|
116 XL
|
294.64
|
58
|
214 XL
|
543.56
|
107
|
384 XL
|
975.36
|
192
|
118 XL
|
299.72
|
59
|
216 XL
|
548.64
|
108
|
390 XL
|
990.60
|
195
|
120 XL
|
304.80
|
60
|
220 XL
|
558.80
|
110
|
400 XL
|
1016.90
|
200
|
122 XL
|
309.88
|
61
|
224 XL
|
568.96
|
112
|
412 XL
|
1046.48
|
206
|
124 XL
|
314.96
|
62
|
226 XL
|
574.04
|
113
|
424 XL
|
1076.90
|
212
|
126 XL
|
320.04
|
63
|
228 XL
|
579.13
|
114
|
430 XL
|
1092.20
|
215
|
128 XL
|
325.12
|
64
|
230 XL
|
584.20
|
115
|
432 XL
|
1097.28
|
216
|
130 XL
|
330.20
|
65
|
236 XL
|
599.44
|
118
|
450 XL
|
1143.00
|
225
|
132 XL
|
335.28
|
66
|
240 XL
|
609.60
|
120
|
460 XL
|
1168.40
|
230
|
134 XL
|
340.36
|
67
|
250 XL
|
635.00
|
125
|
490 XL
|
1244.60
|
245
|
136 XL
|
345.44
|
68
|
260 XL
|
660.40
|
130
|
564 XL
|
1432.56
|
282
|
140 XL
|
355.60
|
70
|
270 XL
|
685.80
|
135
|
572 XL
|
1452.88
|
288
|
142 XL
|
360.68
|
71
|
276 XL
|
701.04
|
138
|
600 XL
|
1524.00
|
300
|
144 XL
|
365.76
|
72
|
280 XL
|
711.20
|
140
|
612 XL
|
1554.48
|
306
|
146 XL
|
370.84
|
73
|
282 XL
|
716.28
|
141
|
630 XL
|
1600.20
|
315
|
150 XL
|
381.00
|
75
|
290 XL
|
736.60
|
145
|
670 XL
|
1701.80
|
335
|
156 XL
|
396.24
|
78
|
296 XL
|
751.84
|
148
|
700 XL
|
1778.00
|
350
|
160 XL
|
406.40
|
80
|
300 XL
|
762.00
|
150
|
720 XL
|
1828.80
|
360
|
162 XL
|
411.48
|
81
|
304 XL
|
772.16
|
152
|
884 XL
|
2245.36
|
442
|
Remark:
1.Standard Width for section XL(025,031,037,050,075)
|
4. Product introduction of belt drive
Synchrounous belt drive consists of an endless belt whose inner surface has equlley spaced teeth and of wheels which have the corresponding teeth and is a kind of new type beltdrive which has synthesized all the good points of belt drive,chain drive,and gear drive whileworking ,the teeth of the belt and the gullets of the gear joggle each other to transmist the motionand the dynamic force.
It has precise driving determining and no sliip,costant speed and stable transmission, vibration-absorptionlittle noise.Range of can reach to 1:10 with allowable speed of 50M/S, transmission power could be from a few watt to hundreds or thousands watts.It is of high transmission efficiency,with average of 90%,with compact structure,and fit for multi-axletransmission,without lubricant and without contamination,so it can work normally under the condition of non-contamina-tion and poorer environmental working places.
|
5. Physic Mechanical Property Of Synchronous belt
Item
|
Trapeziod tooth
|
Atctooth
|
XL
|
L
|
H
|
XH
|
XXH
|
3M
|
5M
|
8M
|
14M
|
20M
|
Tension strength N/mm?
|
80
|
120
|
270
|
380
|
450
|
90
|
160
|
300
|
400
|
520
|
Elongation at break
|
Reference tensile N
|
60
|
90
|
220
|
300
|
360
|
70
|
130
|
240
|
320
|
410
|
Elongation %?
|
4
|
Hardness
|
75±5
|
Fabric bonding strength N/mm?
|
5
|
6.5
|
8
|
10
|
12
|
-
|
6
|
10
|
12
|
15
|
Core rope bonding strength N/mm?
|
200
|
380
|
600
|
800
|
1500
|
-
|
400
|
700
|
1200
|
1600
|
Teeth shearing strength N/mm?
|
50
|
60
|
70
|
75
|
90
|
-
|
50
|
60
|
80
|
100
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6.Instalation instruction of belt
(1)To avoid bending or it will break, as to its allowabledegree, see the attached.
(2)Not allowed to keep it in the bending state for a long period.
(3)Keep it in a cool place.
(4)When installing,shorten the center distance or loose tense gear and then reset.
(5)When installing, its line must be vertical to the side of gear.
(6)The main axle of positive gear and passive gear shall paraller at about tg?=1/1000, position of axle not precise, will effect life of use.
(7)If out of edge, adjust the second axle parallel or the second gear position of axle, and adjusrtthe pressure of tension.
(8)If found it loose,should immediately check the center distance or more the position.
(9)When installing, tension is necessary according to its different specigication and models.
(10)Tension gear should be on the loose side of the belt when transmission.
|
|
Type
|
Type
|
Allowable min. Bending
diameter D(mm)
|
T type synchronous belt
|
MXL,T2.5
|
15
|
XL,T5
|
15
|
L,AT5,T10
|
20
|
AT10,H
|
40
|
XH,T20
|
70
|
XXH,20M
|
100
|
Arc tooth synchronous belt
|
S2M,S3M,3MRPP2M,RPP3M
|
15
|
S4.5M,S5M,4M,RPP5M
|
25
|
S8M,8M,RPP8M
|
40
|
S14M,14MRPP14M
|
80
|
|
ข้อมูลสายพาน HTD 5M
1.The list timing belt specification Model and size
Teeth form diagram HTD 5M type pitch 0.197"(5.00mm) Representation of HTD5M Timing belts :

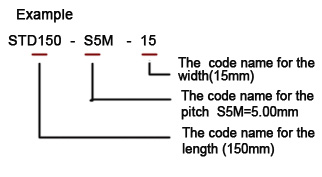

Teeth form diagram STD/STS S5M pitch 0.197"(5.00mm) Representation of S5M Timing belts :

|
2.Arc tooth industrial rubber synchronous belt
Tooth form diagram
|
Toothe type
|
Section
|
pitch (mm)
|
Tooth Height (mm)
|
Belt Height (mm)
|

HTD arc tooth
|
HTD
|
2M
|
2
|
0.75
|
1.36
|
3M
|
3
|
1.17
|
2.4
|
5M
|
5
|
2.06
|
3.8
|
8M
|
8
|
3.36
|
6
|
14M
|
14
|
6.02
|
10
|
20M
|
20
|
8.4
|
13.2
|

STPD/STS arc tooth
|
STPD/STS
|
S2M
|
2
|
0.76
|
1.36
|
S3M
|
3
|
1.14
|
1.9
|
S4.5M
|
4.5
|
1.71
|
2.81
|
S5M
|
5
|
1.91
|
3.4
|
S8M
|
8
|
3.05
|
5.3
|
S14M
|
14
|
5.3
|
10.2
|

PD/HPPD are tooth
|
RPP/HPPD
|
2M
|
2
|
0.76
|
1.36
|
3M
|
3
|
1.15
|
1.9
|
5M
|
5
|
1.95
|
3.5
|
8M
|
8
|
3.2
|
5.5
|
14M
|
14
|
6
|
10
|
|
3.Dimension of rubber synchronous belt
The mould of HTD 5M Timing belt
|
Type
|
Pitch Length
|
Teeth Number
|
Type
|
Pitch Length
|
Teeth Number
|
Type
|
Pitch Length
|
Teeth Number
|
180-5M
|
180.00
|
36
|
565-5M
|
565.00
|
113
|
950-5M
|
950.00
|
190
|
210-5M
|
210.00
|
42
|
570-5M
|
570.00
|
114
|
960-5M
|
960.00
|
192
|
225-5M
|
225.00
|
45
|
575-5M
|
575.00
|
115
|
965-5M
|
965.00
|
193
|
235-5M
|
235.00
|
47
|
580-5M
|
580.00
|
116
|
975-5M
|
975.00
|
195
|
250-5M
|
250.00
|
50
|
585-5M
|
585.00
|
117
|
980-5M
|
980.00
|
196
|
265-5M
|
265.00
|
53
|
590-5M
|
590.00
|
118
|
1000-5M
|
1000.00
|
200
|
280-5M
|
280.00
|
56
|
600-5M
|
600.00
|
120
|
1050-5M
|
1050.00
|
210
|
285-5M
|
285.00
|
57
|
610-5M
|
610.00
|
122
|
1080-5M
|
1080.00
|
216
|
295-5M
|
295.00
|
59
|
615-5M
|
615.00
|
123
|
1100-5M
|
1100.00
|
220
|
300-5M
|
300.00
|
60
|
625-5M
|
625.00
|
125
|
1125-5M
|
1125.00
|
225
|
305-5M
|
305.00
|
61
|
630-5M
|
630.00
|
126
|
1145-5M
|
1145.00
|
229
|
310-5M
|
310.00
|
62
|
635-5M
|
635.00
|
127
|
1150-5M
|
1150.00
|
230
|
320-5M
|
320.00
|
64
|
640-5M
|
640.00
|
128
|
1160-5M
|
1160.00
|
232
|
325-5M
|
325.00
|
65
|
645-5M
|
645.00
|
129
|
1175-5M
|
1175.00
|
235
|
330-5M
|
330.00
|
66
|
650-5M
|
650.00
|
130
|
1190-5M
|
1190.00
|
238
|
335-5M
|
335.00
|
67
|
655-5M
|
655.00
|
131
|
1200-5M
|
1200.00
|
240
|
340-5M
|
340.00
|
68
|
670-5M
|
670.00
|
134
|
1210-5M
|
1210.00
|
242
|
345-5M
|
345.00
|
69
|
690-5M
|
690.00
|
138
|
1225-5M
|
1225.00
|
245
|
350-5M
|
350.00
|
70
|
695-5M
|
695.00
|
139
|
1250-5M
|
1250.00
|
250
|
355-5M
|
355.00
|
71
|
700-5M
|
700.00
|
140
|
1270-5M
|
1270.00
|
254
|
360-5M
|
360.00
|
72
|
710-5M
|
710.00
|
142
|
1340-5M
|
1340.00
|
268
|
365-5M
|
365.00
|
63
|
715-5M
|
715.00
|
143
|
1350-5M
|
1350.00
|
270
|
375-5M
|
375.00
|
75
|
720-5M
|
720.00
|
144
|
1380-5M
|
1380.00
|
276
|
385-5M
|
385.00
|
77
|
730-5M
|
730.00
|
146
|
1400-5M
|
1400.00
|
280
|
400-5M
|
400.00
|
80
|
740-5M
|
740.00
|
148
|
1420-5M
|
1420.00
|
284
|
405-5M
|
405.00
|
81
|
745-5M
|
745.00
|
149
|
1455-5M
|
1455.00
|
291
|
410-5M
|
410.00
|
82
|
750-5M
|
750.00
|
150
|
1490-5M
|
1490.00
|
298
|
420-5M
|
420.00
|
84
|
755-5M
|
755.00
|
151
|
1500-5M
|
1500.00
|
300
|
425-5M
|
425.00
|
85
|
770-5M
|
770.00
|
154
|
1595-5M
|
1595.00
|
319
|
450-5M
|
450.00
|
90
|
780-5M
|
780.00
|
156
|
1690-5M
|
1690.00
|
338
|
460-5M
|
460.00
|
92
|
800-5M
|
800.00
|
160
|
1700-5M
|
1700.00
|
340
|
470-5M
|
470.00
|
94
|
810-5M
|
810.00
|
162
|
1720-5M
|
1720.00
|
344
|
475-5M
|
475.00
|
95
|
815-5M
|
815.00
|
163
|
1760-5M
|
1760.00
|
352
|
480-5M
|
480.00
|
96
|
825-5M
|
825.00
|
165
|
1800-5M
|
1800.00
|
360
|
490-5M
|
490.00
|
98
|
830-5M
|
830.00
|
166
|
1870-5M
|
1870.00
|
374
|
500-5M
|
500.00
|
100
|
835-5M
|
835.00
|
167
|
2000-5M
|
2000.00
|
400
|
505-5M
|
505.00
|
101
|
845-5M
|
845.00
|
169
|
2050-5M
|
2050.00
|
410
|
520-5M
|
520.00
|
104
|
850-5M
|
850.00
|
170
|
2100-5M
|
2100.00
|
420
|
525-5M
|
525.00
|
105
|
860-5M
|
860.00
|
172
|
2250-5M
|
2250.00
|
450
|
530-5M
|
530.00
|
106
|
890-5M
|
890.00
|
178
|
2350-5M
|
2350.00
|
470
|
535-5M
|
535.00
|
107
|
900-5M
|
900.00
|
180
|
2500-5M
|
2500.00
|
500
|
540-5M
|
540.00
|
108
|
920-5M
|
920.00
|
184
|
3255-5M
|
3255.00
|
651
|
550-5M
|
550.00
|
110
|
925-5M
|
925.00
|
185
|
3750-5M
|
3750.00
|
750
|
560-5M
|
560.00
|
112
|
935-5M
|
935.00
|
187
|
3770-5M
|
3770.00
|
754
|
The mould of STD/STS S5M Timing belt
|
Type
|
Pitch
Length
|
Teeth
Number
|
Type
|
Pitch
Length
|
Teeth
Number
|
Type
|
Pitch
Length
|
Teeth
Number
|
S5M-150
|
150.00
|
30
|
S5M-500
|
500.00
|
100
|
S5M-810
|
810.00
|
162
|
S5M-250
|
250.00
|
50
|
S5M-520
|
520.00
|
104
|
S5M-850
|
850.00
|
170
|
S5M-255
|
255.00
|
51
|
S5M-525
|
525.00
|
105
|
S5M-900
|
900.00
|
180
|
S5M-295
|
295.00
|
59
|
S5M-550
|
550.00
|
110
|
S5M-950
|
950.00
|
190
|
S5M-300
|
300.00
|
60
|
S5M-560
|
560.00
|
112
|
S5M-975
|
975.00
|
195
|
S5M-325
|
325.00
|
65
|
S5M-575
|
575.00
|
115
|
S5M-1000
|
1000.00
|
200
|
S5M-335
|
335.00
|
67
|
S5M-600
|
600.00
|
120
|
S5M-1050
|
1050.00
|
210
|
S5M-340
|
340.00
|
68
|
S5M-625
|
625.00
|
125
|
S5M-1125
|
1125.00
|
225
|
S5M-355
|
355.00
|
71
|
S5M-650
|
650.00
|
130
|
S5M-1270
|
1270.00
|
254
|
S5M-375
|
375.00
|
75
|
S5M-670
|
670.00
|
134
|
S5M-1350
|
1350.00
|
270
|
S5M-400
|
400.00
|
80
|
S5M-675
|
675.00
|
135
|
S5M-1420
|
1420.00
|
284
|
S5M-410
|
410.00
|
82
|
S5M-695
|
695.00
|
139
|
S5M-1595
|
1595.00
|
319
|
S5M-420
|
420.00
|
84
|
S5M-700
|
700.00
|
140
|
S5M-1800
|
1800.00
|
360
|
S5M-425
|
425.00
|
85
|
S5M-710
|
710.00
|
142
|
S5M-2000
|
2000.00
|
400
|
S5M-475
|
475.00
|
95
|
S5M-750
|
750.00
|
150
|
|
|
|
S5M-490
|
490.00
|
98
|
S5M-800
|
800.00
|
160
|
|
|
|
Remark:
1.Standard Width for section 5M S5M pitch 0.197" (5.00mm) 6mm,9mm,15mm,20mm,25mm,30mm
|
4. Product introduction of belt drive
Synchrounous belt drive consists of an endless belt whose inner surface has equlley spaced teeth and of wheels which have the corresponding teeth and is a kind of new type beltdrive which has synthesized all the good points of belt drive,chain drive,and gear drive whileworking ,the teeth of the belt and the gullets of the gear joggle each other to transmist the motionand the dynamic force.
It has precise driving determining and no sliip,costant speed and stable transmission, vibration-absorptionlittle noise.Range of can reach to 1:10 with allowable speed of 50M/S, transmission power could be from a few watt to hundreds or thousands watts.It is of high transmission efficiency,with average of 90%,with compact structure,and fit for multi-axletransmission,without lubricant and without contamination,so it can work normally under the condition of non-contamina-tion and poorer environmental working places.
|
5. Physic Mechanical Property Of Synchronous belt
Physic Mechanical Property of Synchronous Belts
|
Item
|
Trapezoid tooth
|
Arc tooth
|
MXL
|
XL XXL
|
L
|
H
|
XH
|
XXH
|
T2.5
|
T5 AT5
|
T10 AT10
|
T20 AT20
|
2M S2M RPP2M
|
3M S3M RPP3M
|
S4.5M 5M S5M RPP5M
|
8M S8M RPP8M
|
14M S14M RPP14M
|
20M RPP20M
|
Tension strength N/mm≥
|
45
|
80
|
120
|
270
|
380
|
450
|
45
|
80
|
270
|
380
|
45
|
90
|
160
|
300
|
400
|
520
|
Elongation at break
|
Reference tensile N
|
35
|
60
|
90
|
220
|
300
|
360
|
35
|
60
|
220
|
300
|
35
|
70
|
130
|
240
|
320
|
410
|
Elongation %≤
|
4
|
Hardness
|
75 ± 5
|
Fabric bonding strength N/mm≥
|
/
|
5
|
6.5
|
8
|
10
|
12
|
/
|
5
|
8
|
10
|
/
|
/
|
6
|
10
|
12
|
15
|
Core rope bonding strength N/mm≥
|
/
|
200
|
380
|
600
|
800
|
1500
|
/
|
200
|
600
|
800
|
/
|
/
|
400
|
700
|
1200
|
1600
|
Teeth shearing strength N/mm≥
|
/
|
50
|
60
|
70
|
75
|
90
|
/
|
50
|
70
|
75
|
/
|
/
|
50
|
60
|
80
|
100
|
6.Synchronous belt and Synchronous pulley selection graph
|
7.Instalation instruction of belt
(1)To avoid bending or it will break, as to its allowabledegree, see the attached.
(2)Not allowed to keep it in the bending state for a long period.
(3)Keep it in a cool place.
(4)When installing,shorten the center distance or loose tense gear and then reset.
(5)When installing, its line must be vertical to the side of gear.
(6)The main axle of positive gear and passive gear shall paraller at about tgθ=1/1000, position of axle not precise, will effect life of use.
(7)If out of edge, adjust the second axle parallel or the second gear position of axle, and adjusrtthe pressure of tension.
(8)If found it loose,should immediately check the center distance or more the position.
(9)When installing, tension is necessary according to its different specigication and models.
(10)Tension gear should be on the loose side of the belt when transmission.
|
|
Type
|
Type
|
Allowable min. Bending
diameter D(mm)
|
T type synchronous belt
|
MXL,T2.5
|
15
|
XL,T5
|
15
|
L,AT5,T10
|
20
|
AT10,H
|
40
|
XH,T20
|
70
|
XXH,20M
|
100
|
Arc tooth synchronous belt
|
S2M,S3M,3MRPP2M,RPP3M
|
15
|
S4.5M,S5M,4M,RPP5M
|
25
|
S8M,8M,RPP8M
|
40
|
S14M,14MRPP14M
|
80
|
ข้อมูลสายพาน HTD 3M
1.The list timing belt specification Model and size(HTD3M type Pitch=3.00mm)
Tooth form diagram(3M): Representation of HTD3M belts :

|
2.Arc tooth industrial rubber synchronous belt
Tooth form diagram
|
Toothe type
|
Section
|
pitch (mm)
|
Tooth Height (mm)
|
Belt Height (mm)
|

HTD arc tooth
|
HTD
|
2M
|
2
|
0.75
|
1.36
|
3M
|
3
|
1.17
|
2.4
|
5M
|
5
|
2.06
|
3.8
|
8M
|
8
|
3.36
|
6
|
14M
|
14
|
6.02
|
10
|
20M
|
20
|
8.4
|
13.2
|

STPD/STS arc tooth
|
STPD/STS
|
S2M
|
2
|
0.76
|
1.36
|
S3M
|
3
|
1.14
|
1.9
|
S4.5M
|
4.5
|
1.71
|
2.81
|
S5M
|
5
|
1.91
|
3.4
|
S8M
|
8
|
3.05
|
5.3
|
S14M
|
14
|
5.3
|
10.2
|

PD/HPPD are tooth
|
RPP/HPPD
|
2M
|
2
|
0.76
|
1.36
|
3M
|
3
|
1.15
|
1.9
|
5M
|
5
|
1.95
|
3.5
|
8M
|
8
|
3.2
|
5.5
|
14M
|
14
|
6
|
10
|
|
3.Dimension of rubber synchronous belt
Type
|
PichLength
|
Teeth Number
|
Type
|
Pich Length
|
Teeth Number
|
Type
|
Pich Length
|
Teeth Number
|
111-3M
|
111.00
|
37
|
285-3M
|
285.00
|
95
|
501-3M
|
501.00
|
167
|
120-3M
|
120.00
|
40
|
288-3M
|
288.00
|
96
|
513-3M
|
513.00
|
171
|
129-3M
|
129.00
|
43
|
291-3M
|
291.00
|
97
|
519-3M
|
519.00
|
173
|
135-3M
|
135.00
|
45
|
294-3M
|
294.00
|
98
|
522-3M
|
522.00
|
174
|
141-3M
|
141.00
|
47
|
297-3M
|
297.00
|
99
|
531-3M
|
531.00
|
177
|
150-3M
|
150.00
|
50
|
300-3M
|
300.00
|
100
|
537-3M
|
537.00
|
179
|
153-3M
|
153.00
|
51
|
306-3M
|
306.00
|
102
|
546-3M
|
546.00
|
182
|
156-3M
|
156.00
|
52
|
309-3M
|
309.00
|
103
|
552-3M
|
552.00
|
184
|
159-3M
|
159.00
|
53
|
312-3M
|
312.00
|
104
|
564-3M
|
564.00
|
188
|
165-3M
|
165.00
|
55
|
315-3M
|
315.00
|
105
|
576-3M
|
576.00
|
192
|
171-3M
|
171.00
|
57
|
318-3M
|
318.00
|
106
|
582-3M
|
582.00
|
194
|
174-3M
|
174.00
|
58
|
324-3M
|
324.00
|
108
|
597-3M
|
597.00
|
199
|
177-3M
|
177.00
|
59
|
327-3M
|
327.00
|
109
|
606-3M
|
606.00
|
202
|
180-3M
|
180.00
|
60
|
330-3M
|
330.00
|
110
|
609-3M
|
609.00
|
203
|
189-3M
|
189.00
|
63
|
336-3M
|
336.00
|
112
|
612-3M
|
612.00
|
204
|
192-3M
|
192.00
|
64
|
339-3M
|
339.00
|
113
|
630-3M
|
630.00
|
210
|
195-3M
|
195.00
|
65
|
345-3M
|
345.00
|
115
|
633-3M
|
633.00
|
211
|
201-3M
|
201.00
|
67
|
348-3M
|
348.00
|
116
|
648-3M
|
648.00
|
216
|
204-3M
|
204.00
|
68
|
351-3M
|
351.00
|
117
|
654-3M
|
654.00
|
218
|
207-3M
|
207.00
|
69
|
354-3M
|
354.00
|
118
|
669-3M
|
669.00
|
223
|
210-3M
|
210.00
|
70
|
357-3M
|
357.00
|
119
|
675-3M
|
675.00
|
225
|
213-3M
|
213.00
|
71
|
363-3M
|
363.00
|
121
|
699-3M
|
699.00
|
233
|
219-3M
|
219.00
|
73
|
369-3M
|
369.00
|
122
|
711-3M
|
711.00
|
237
|
222-3M
|
222.00
|
74
|
375-3M
|
375.00
|
123
|
750-3M
|
750.00
|
250
|
225-3M
|
225.00
|
75
|
384-3M
|
384.00
|
128
|
753-3M
|
753.00
|
251
|
228-3M
|
228.00
|
76
|
390-3M
|
390.00
|
130
|
801-3M
|
801.00
|
267
|
237-3M
|
237.00
|
79
|
399-3M
|
399.00
|
133
|
813-3M
|
813.00
|
271
|
240-3M
|
240.00
|
80
|
405-3M
|
405.00
|
135
|
885-3M
|
885.00
|
295
|
246-3M
|
246.00
|
82
|
411-3M
|
411.00
|
137
|
900-3M
|
900.00
|
300
|
252-3M
|
252.00
|
84
|
420-3M
|
420.00
|
140
|
939-3M
|
939.00
|
313
|
255-3M
|
255.00
|
85
|
426-3M
|
426.00
|
142
|
1125-3M
|
1125.00
|
375
|
261-3M
|
261.00
|
87
|
432-3M
|
432.00
|
144
|
1245-3M
|
1245.00
|
415
|
264-3M
|
264.00
|
88
|
447-3M
|
447.00
|
149
|
1569-3M
|
1569.00
|
523
|
267-3M
|
267.00
|
89
|
459-3M
|
459.00
|
153
|
1800-3M
|
1800.00
|
600
|
270-3M
|
270.00
|
90
|
474-3M
|
474.00
|
158
|
2388-3M
|
2388.00
|
796
|
276-3M
|
276.00
|
92
|
480-3M
|
480.00
|
160
|
2640-3M
|
2640.00
|
880
|
279-3M
|
279.00
|
93
|
486-3M
|
486.00
|
162
|
3000-3M
|
3000.00
|
1000
|
282-3M
|
282.00
|
94
|
495-3M
|
495.00
|
165
|
|
|
|
1.Standard Width for section 3M (6mm,9mm,15mm,20mm,30mm )
|
4. Product introduction of belt drive
Synchrounous belt drive consists of an endless belt whose inner surface has equlley spaced teeth and of wheels which have the corresponding teeth and is a kind of new type beltdrive which has synthesized all the good points of belt drive,chain drive,and gear drive whileworking ,the teeth of the belt and the gullets of the gear joggle each other to transmist the motionand the dynamic force.
It has precise driving determining and no sliip,costant speed and stable transmission, vibration-absorptionlittle noise.Range of can reach to 1:10 with allowable speed of 50M/S, transmission power could be from a few watt to hundreds or thousands watts.It is of high transmission efficiency,with average of 90%,with compact structure,and fit for multi-axletransmission,without lubricant and without contamination,so it can work normally under the condition of non-contamina-tion and poorer environmental working places.
|
5. Physic Mechanical Property Of Synchronous belt
Item
|
Trapeziod tooth
|
Atctooth
|
XL
|
L
|
H
|
XH
|
XXH
|
3M
|
5M
|
8M
|
14M
|
20M
|
Tension strength N/mm?
|
80
|
120
|
270
|
380
|
450
|
90
|
160
|
300
|
400
|
520
|
Elongation at break
|
Reference tensile N
|
60
|
90
|
220
|
300
|
360
|
70
|
130
|
240
|
320
|
410
|
Elongation %?
|
4
|
Hardness
|
75±5
|
Fabric bonding strength N/mm?
|
5
|
6.5
|
8
|
10
|
12
|
-
|
6
|
10
|
12
|
15
|
Core rope bonding strength N/mm?
|
200
|
380
|
600
|
800
|
1500
|
-
|
400
|
700
|
1200
|
1600
|
Teeth shearing strength N/mm?
|
50
|
60
|
70
|
75
|
90
|
-
|
50
|
60
|
80
|
100
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6.Instalation instruction of belt
(1)To avoid bending or it will break, as to its allowabledegree, see the attached.
(2)Not allowed to keep it in the bending state for a long period.
(3)Keep it in a cool place.
(4)When installing,shorten the center distance or loose tense gear and then reset.
(5)When installing, its line must be vertical to the side of gear.
(6)The main axle of positive gear and passive gear shall paraller at about tg?=1/1000, position of axle not precise, will effect life of use.
(7)If out of edge, adjust the second axle parallel or the second gear position of axle, and adjusrtthe pressure of tension.
(8)If found it loose,should immediately check the center distance or more the position.
(9)When installing, tension is necessary according to its different specigication and models.
(10)Tension gear should be on the loose side of the belt when transmission.
|
|
Type
|
Type
|
Allowable min. Bending
diameter D(mm)
|
T type synchronous belt
|
MXL,T2.5
|
15
|
XL,T5
|
15
|
L,AT5,T10
|
20
|
AT10,H
|
40
|
XH,T20
|
70
|
XXH,20M
|
100
|
Arc tooth synchronous belt
|
S2M,S3M,3MRPP2M,RPP3M
|
15
|
S4.5M,S5M,4M,RPP5M
|
25
|
S8M,8M,RPP8M
|
40
|
S14M,14MRPP14M
|
80
|
|
|
|
|
